60 80 Tons 4 Axles Rear Dump Trailers 35 40 Cubic Meter Rear Tipper Trailers
Rear Dump Trailers Advantages:
Volume and Loading capacity of rear dump trailers can be customized according to customer’s requirements.
Frame body Q345B high strength structure steel.
Well-known brand axles, suspension systems, high performance, and reliable to use.
Alston rear dump trailers are equipped with HYVA cylinder, which is more reliable and safer.
Full braking and electrical systems at home and abroad are in accordance with ISO standard, optional ABS
system. Braking and lighting are absolutely safe and reliable.

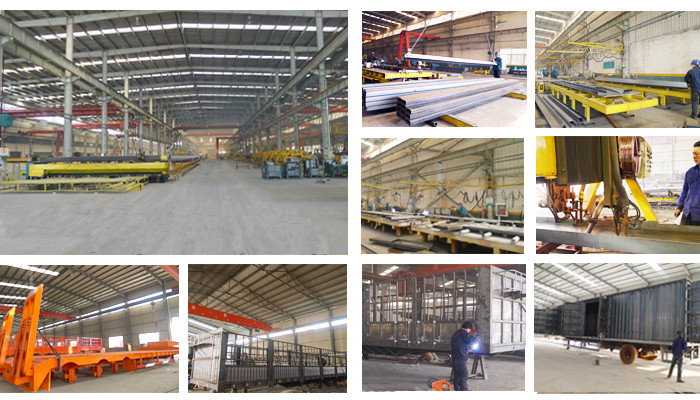

Production Process
A. Steel auto cutting
B. Main beam auto submerged arc welding
C. chassis reversal
D. shot blasting for rust cleaning
E. Welding by experienced worker
F. Final cleaning welding slag
G. Dust-free painting
REAR DUMP TRAILERS SPECIFICATIONS
| | Model | 4 axle 40m3 rear dump trailer | | | Function | Transport sand, stone, gravel | | Dimension | | | Overall Size (L×W×H)mm | 9600×2550×3860mm | | | Inner Size (L×W×H)mm | 8300×2330×2000mm | | | Wheel base | 6870+1310+1310mm | | Weight | | | Payload | 68,000kg | | | Tare weight | Approx12,000kg | | | G.V.W.R. | Approx 80,000kg | | Body details | | | Main beam | Material Q345 carbon steel, upper plate 18mm, down plate 18mm, middle plate 8+8mm. | | | Body thickness | 6mm | | | Bottom thickness | 8mm | | | Hydraulic System | Full set of HYVA Hydraulic System 202 | | Frame | | | Axle | heavy duty, 4×13Ton capacity, FUWA brand | | | Suspension | Leaf spring suspension, 90mm×16mm×10pcs | | | Tire | 12R22.5 16units Taitong Brand | | | Kingpin | 50mm/90mm removable | | | Landing gear | Yahua brand, 28ton, double speed, heavy duty | | | Tool box | 1pcs | | | Spare wheel carrier | 2pcs | |
